Calico CNI and its networking mode
KANS(Kubernetes Advanced Networking Study)
45 min readSep 21, 2024
We delved deep into Calico, a cornerstone of Kubernetes networking. As we progress through our studies, building knowledge piece by piece can be challenging, but it’s incredibly rewarding to learn new concepts and technologies. We focused on Calico, a Container Network Interface (CNI) for Kubernetes, which was briefly mentioned alongside Flannel CNI in our previous session.
- Pod-to-Pod communication without NAT
- Node-to-Pod communication
- Host-mode Pods must communicate with other Pods without NAT
- Service IP ranges must not overlap with Pod IP ranges
These requirements form the foundation of any CNI, including popular options like EKS VPC CNI, Calico, and Flannel. While each CNI has its unique features and operational methods, they all must adhere to these interface standards.
Calico is one of the most widely adopted CNIs, offering a broad range of networking modes to suit various requirements. Its versatility extends beyond Kubernetes, making it suitable for diverse environments. According to Calico’s official documentation, it’s compatible with nearly all infrastructure setups, including:
- On-premises data centers
- Public clouds (AWS, GCP, Azure)
- OpenStack environments
- Bare metal servers
- Virtual machines
One interesting discovery from the official documentation is that Calico offers multiple product tiers, each with distinct feature sets. Also, it leverages BGP for efficient routing, allowing for scalable and performant networking in large clusters. For a detailed comparison, refer to the official Calico documentation at https://docs.tigera.io/.

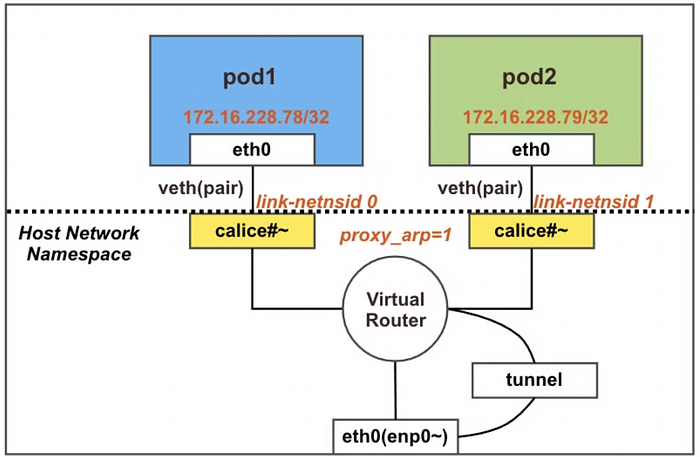

Calico’s architecture consists of several key components.
- Bird: An open-source BGP routing daemon that distributes routes from Felix to BGP peers (nodes) in the network, facilitating inter-host routing.
- Felix: A daemon that manages routes, ACLs, and other configurations on each host to provide desired connectivity for endpoints.
- Confd: A lightweight, open-source configuration management tool that monitors changes in the Calico Datastore for BGP configurations, AS numbers, logging levels, and IPAM information.
- IPAM (IP Address Management): Controls IP address allocation to Pods within the cluster using Calico’s IP pool resources.
- Typha: Acts as a cache between the datastore and Felix instances to improve scalability by reducing the load on the datastore.
- Datastore: Stores Calico-related configurations, similar to Kubernetes’ etcd. It supports both Kubernetes API and etcd storage methods, with the API method being simpler to manage as it doesn’t require an additional datastore.

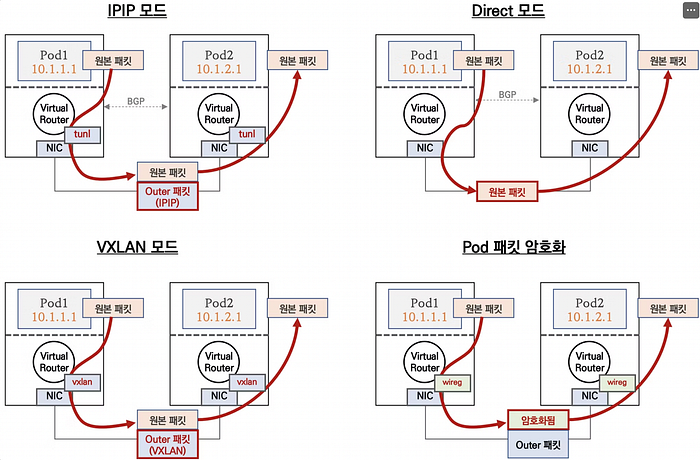

Calico supports several networking modes, each with its own characteristics:

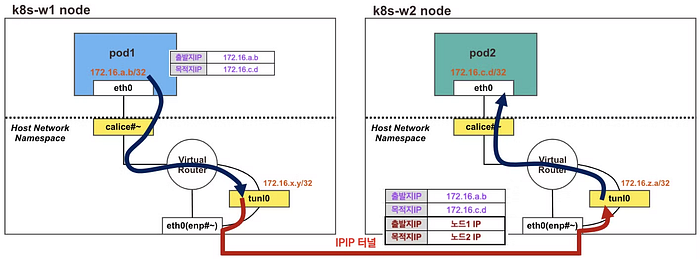

- IPIP Mode: Similar to Flannel, encapsulating packets for inter-node communication.
- Direct Mode: Packets are routed directly between nodes based on routing information, without encapsulation.
- VXLAN Mode: Inter-node Pod communication occurs through VXLAN interfaces, encapsulating L2 frames in UDP-VXLAN packets.
- Pod Packet Encryption Mode: Utilizes WireGuard tunnels to automatically encrypt and securely transmit Pod traffic between nodes.
Practice: Initial Setup

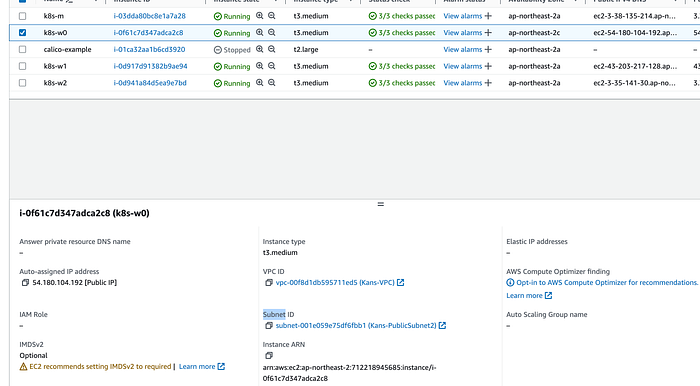

The instructions begin with setting up a Kubernetes cluster using AWS CloudFormation. This creates a multi-node cluster with a master node (k8s-m) and worker nodes.
curl -O https://s3.ap-northeast-2.amazonaws.com/cloudformation.cloudneta.net/kans/kans-3w.yaml
aws cloudformation deploy --template-file kans-3w.yaml --stack-name mylab --parameter-overrides KeyName=kp-gasida SgIngressSshCidr=$(curl -s ipinfo.io/ip)/32 --region ap-northeast-2
aws cloudformation deploy --template-file kans-3w.yaml --stack-name mylab --parameter-overrides MyInstanceType=t2.micro KeyName=kp-gasida SgIngressSshCidr=$(curl -s ipinfo.io/ip)/32 --region ap-northeast-2
aws cloudformation describe-stacks --stack-name mylab --query 'Stacks[*].Outputs[0].OutputValue' --output text --region ap-northeast-2
while true; do
date
AWS_PAGER="" aws cloudformation list-stacks \
--stack-status-filter CREATE_IN_PROGRESS CREATE_COMPLETE CREATE_FAILED DELETE_IN_PROGRESS DELETE_FAILED \
--query "StackSummaries[*].{StackName:StackName, StackStatus:StackStatus}" \
--output table
sleep 1
done
ssh -i ~/.ssh/kp-test.pem ubuntu@$(aws cloudformation describe-stacks --stack-name mylab --query 'Stacks[*].Outputs[0].OutputValue' --output text --region ap-northeast-2)Before installing Calico, the network configuration is minimal:

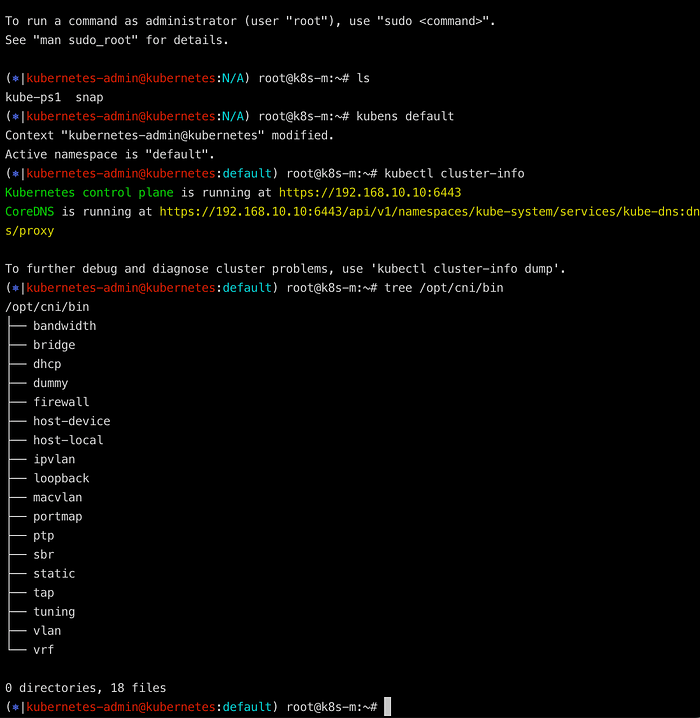

- The
ip addroutput shows only the loopback (lo) and the primary network interface (ens5). - IPTables rules are relatively simple, with basic Kubernetes-related chains but no CNI-specific rules.
- There are 50 filter table rules and 48 NAT table rules.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ip -c addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc mq state UP group default qlen 1000
link/ether 02:47:bd:e3:55:01 brd ff:ff:ff:ff:ff:ff
altname enp0s5
inet 192.168.10.10/24 metric 100 brd 192.168.10.255 scope global dynamic ens5
valid_lft 3328sec preferred_lft 3328sec
inet6 fe80::47:bdff:fee3:5501/64 scope link
valid_lft forever preferred_lft forever
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~#(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t filter -L
Chain INPUT (policy ACCEPT)
target prot opt source destination
KUBE-PROXY-FIREWALL all -- anywhere anywhere ctstate NEW /* kubernetes load balancer firewall */
KUBE-NODEPORTS all -- anywhere anywhere /* kubernetes health check service ports */
KUBE-EXTERNAL-SERVICES all -- anywhere anywhere ctstate NEW /* kubernetes externally-visible service portals */
KUBE-FIREWALL all -- anywhere anywhere
Chain FORWARD (policy ACCEPT)
target prot opt source destination
KUBE-PROXY-FIREWALL all -- anywhere anywhere ctstate NEW /* kubernetes load balancer firewall */
KUBE-FORWARD all -- anywhere anywhere /* kubernetes forwarding rules */
KUBE-SERVICES all -- anywhere anywhere ctstate NEW /* kubernetes service portals */
KUBE-EXTERNAL-SERVICES all -- anywhere anywhere ctstate NEW /* kubernetes externally-visible service portals */
Chain OUTPUT (policy ACCEPT)
target prot opt source destination
KUBE-PROXY-FIREWALL all -- anywhere anywhere ctstate NEW /* kubernetes load balancer firewall */
KUBE-SERVICES all -- anywhere anywhere ctstate NEW /* kubernetes service portals */
KUBE-FIREWALL all -- anywhere anywhere
Chain KUBE-EXTERNAL-SERVICES (2 references)
target prot opt source destination
Chain KUBE-FIREWALL (2 references)
target prot opt source destination
DROP all -- !localhost/8 localhost/8 /* block incoming localnet connections */ ! ctstate RELATED,ESTABLISHED,DNAT
Chain KUBE-FORWARD (1 references)
target prot opt source destination
DROP all -- anywhere anywhere ctstate INVALID
ACCEPT all -- anywhere anywhere /* kubernetes forwarding rules */
ACCEPT all -- anywhere anywhere /* kubernetes forwarding conntrack rule */ ctstate RELATED,ESTABLISHED
Chain KUBE-KUBELET-CANARY (0 references)
target prot opt source destination
Chain KUBE-NODEPORTS (1 references)
target prot opt source destination
Chain KUBE-PROXY-CANARY (0 references)
target prot opt source destination
Chain KUBE-PROXY-FIREWALL (3 references)
target prot opt source destination
Chain KUBE-SERVICES (2 references)
target prot opt source destination
REJECT tcp -- anywhere ip-10-200-1-10.ap-northeast-2.compute.internal /* kube-system/kube-dns:dns-tcp has no endpoints */ reject-with icmp-port-unreachable
REJECT tcp -- anywhere ip-10-200-1-10.ap-northeast-2.compute.internal /* kube-system/kube-dns:metrics has no endpoints */ reject-with icmp-port-unreachable
REJECT udp -- anywhere ip-10-200-1-10.ap-northeast-2.compute.internal /* kube-system/kube-dns:dns has no endpoints */ reject-with icmp-port-unreachable
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~#(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t nat -L
Chain PREROUTING (policy ACCEPT)
target prot opt source destination
KUBE-SERVICES all -- anywhere anywhere /* kubernetes service portals */
Chain INPUT (policy ACCEPT)
target prot opt source destination
Chain OUTPUT (policy ACCEPT)
target prot opt source destination
KUBE-SERVICES all -- anywhere anywhere /* kubernetes service portals */
Chain POSTROUTING (policy ACCEPT)
target prot opt source destination
KUBE-POSTROUTING all -- anywhere anywhere /* kubernetes postrouting rules */
Chain KUBE-KUBELET-CANARY (0 references)
target prot opt source destination
Chain KUBE-MARK-MASQ (2 references)
target prot opt source destination
MARK all -- anywhere anywhere MARK or 0x4000
Chain KUBE-NODEPORTS (1 references)
target prot opt source destination
Chain KUBE-POSTROUTING (1 references)
target prot opt source destination
RETURN all -- anywhere anywhere
MARK all -- anywhere anywhere MARK xor 0x4000
MASQUERADE all -- anywhere anywhere /* kubernetes service traffic requiring SNAT */ random-fully
Chain KUBE-PROXY-CANARY (0 references)
target prot opt source destination
Chain KUBE-SEP-FKILGDVKESVSEHEB (1 references)
target prot opt source destination
KUBE-MARK-MASQ all -- k8s-m anywhere /* default/kubernetes:https */
DNAT tcp -- anywhere anywhere /* default/kubernetes:https */ tcp to:192.168.10.10:6443
Chain KUBE-SERVICES (2 references)
target prot opt source destination
KUBE-SVC-NPX46M4PTMTKRN6Y tcp -- anywhere ip-10-200-1-1.ap-northeast-2.compute.internal /* default/kubernetes:https cluster IP */
KUBE-NODEPORTS all -- anywhere anywhere /* kubernetes service nodeports; NOTE: this must be the last rule in this chain */ ADDRTYPE match dst-type LOCAL
Chain KUBE-SVC-NPX46M4PTMTKRN6Y (1 references)
target prot opt source destination
KUBE-MARK-MASQ tcp -- !ip-172-16-0-0.ap-northeast-2.compute.internal/16 ip-10-200-1-1.ap-northeast-2.compute.internal /* default/kubernetes:https cluster IP */
KUBE-SEP-FKILGDVKESVSEHEB all -- anywhere anywhere /* default/kubernetes:https -> 192.168.10.10:6443 */
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~#(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t nat -L | wc -l
48
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t filter -L | wc -l
50Calico is installed using a custom YAML file.
- Calico daemon sets for each node
- Custom Resource Definitions (CRDs) for Calico’s components
- RBAC rules for Calico’s operation
- ConfigMaps for Calico configuration
After installing Calico, several changes occur.
a. New Pods:
- Calico controller pod is deployed
- Calico node pods are deployed on each Kubernetes node
- CoreDNS pods transition from Pending to Running state
b. Networking interfaces.
- New virtual interfaces (like cali* and tunl0) should appear
- Routing tables would be updated to include routes for pod networks
- IPTables rules would significantly increase to handle pod-to-pod and pod-to-service communication
c. Functionality:
- CoreDNS becomes operational, indicating that the cluster’s internal DNS is now functional
- Pod-to-pod communication across nodes becomes possible
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl apply -f https://raw.githubusercontent.com/gasida/KANS/main/kans3/calico-kans.yaml
poddisruptionbudget.policy/calico-kube-controllers created
serviceaccount/calico-kube-controllers created
serviceaccount/calico-node created
serviceaccount/calico-cni-plugin created
configmap/calico-config created
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgpfilters.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrole.rbac.authorization.k8s.io/calico-cni-plugin created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-cni-plugin created
daemonset.apps/calico-node created
deployment.apps/calico-kube-controllers createdPlease note that it operates as a DaemonSet, ensuring it runs on every node
- It sets up the necessary networking components for inter-pod and inter-node communication
- The installation of Calico resolves the ‘Pending’ state of core components like CoreDNS.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl get pod -A -owide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-77d59654f4-xgt7f 1/1 Running 0 39s 172.16.158.2 k8s-w1 <none> <none>
kube-system calico-node-6pjnv 1/1 Running 0 39s 192.168.10.101 k8s-w1 <none> <none>
kube-system calico-node-gkmrh 1/1 Running 0 39s 192.168.10.102 k8s-w2 <none> <none>
kube-system calico-node-vdxld 1/1 Running 0 39s 192.168.10.10 k8s-m <none> <none>
kube-system calico-node-whxqz 1/1 Running 0 39s 192.168.20.100 k8s-w0 <none> <none>
kube-system coredns-55cb58b774-djmlk 1/1 Running 0 5m6s 172.16.158.3 k8s-w1 <none> <none>
kube-system coredns-55cb58b774-z482n 1/1 Running 0 5m6s 172.16.158.1 k8s-w1 <none> <none>
kube-system etcd-k8s-m 1/1 Running 0 5m21s 192.168.10.10 k8s-m <none> <none>
kube-system kube-apiserver-k8s-m 1/1 Running 0 5m21s 192.168.10.10 k8s-m <none> <none>
kube-system kube-controller-manager-k8s-m 1/1 Running 0 5m21s 192.168.10.10 k8s-m <none> <none>
kube-system kube-proxy-8s5ws 1/1 Running 0 5m2s 192.168.10.101 k8s-w1 <none> <none>
kube-system kube-proxy-jp6h8 1/1 Running 0 5m4s 192.168.10.102 k8s-w2 <none> <none>
kube-system kube-proxy-mmk4s 1/1 Running 0 5m5s 192.168.20.100 k8s-w0 <none> <none>
kube-system kube-proxy-mmxpz 1/1 Running 0 5m7s 192.168.10.10 k8s-m <none> <none>
kube-system kube-scheduler-k8s-m 1/1 Running 0 5m21s 192.168.10.10 k8s-m <none> <none>The Calico CNI is installed using a custom YAML file, and it contains all necessary components for Calico, including DaemonSets, ConfigMaps, and Custom Resource Definitions (CRDs). When creating new CRDs, then new virtual interfaces are created, including tunl0 for IPIP tunneling; the cali* interfaces are created for each pod.
Also New routes are added for pod networks, utilizing the tunl0 interface; Approximately 60 new rules are added to both the filter and NAT tables, which manage pod-to-pod and pod-to-service communication.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# curl -L https://github.com/projectcalico/calico/releases/download/v3.28.1/calicoctl-linux-amd64 -o calicoctl
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 64.4M 100 64.4M 0 0 33.5M 0 0:00:01 0:00:01 --:--:-- 89.3M
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# chmod +x calicoctl
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# sudo mv calicoctl /usr/local/bin/
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl
Usage:
calicoctl [options] <command> [<args>...]
Invalid option: ''. Use flag '--help' to read about a specific subcommand.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl version
Client Version: v3.28.1
Git commit: 601856343
Cluster Version: v3.28.1
Cluster Type: k8s,bgp,kubeadm,kddcalicoctl ipam show: Displays IPAM information, including used and available IPs.calicoctl node status: Shows node status and BGP peer information.calicoctl get ippool: Retrieves IP pool configurations.calicoctl get workloadEndpoint: Lists all pod network endpoints.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# tree /opt/cni/bin
/opt/cni/bin
├── bandwidth
├── bridge
├── calico
├── calico-ipam
├── dhcp
├── dummy
├── firewall
├── flannel
├── host-device
├── host-local
├── ipvlan
├── loopback
├── macvlan
├── portmap
├── ptp
├── sbr
├── static
├── tap
├── tuning
├── vlan
└── vrf
0 directories, 21 files
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ls -al /opt/cni/bin
total 209428
drwxr-xr-x 2 root root 4096 Sep 22 01:52 .
drwxr-xr-x 3 root root 4096 Sep 22 01:46 ..
-rwxr-xr-x 1 root root 4141145 Sep 22 01:52 bandwidth
-rwxr-xr-x 1 root root 4652757 Jan 11 2024 bridge
-rwxr-xr-x 1 root root 65288440 Sep 22 01:52 calico
-rwxr-xr-x 1 root root 65288440 Sep 22 01:52 calico-ipam
-rwxr-xr-x 1 root root 11050013 Jan 11 2024 dhcp
-rwxr-xr-x 1 root root 4297556 Jan 11 2024 dummy
-rwxr-xr-x 1 root root 4736299 Jan 11 2024 firewall
-rwxr-xr-x 1 root root 2586700 Sep 22 01:52 flannel
-rwxr-xr-x 1 root root 4191837 Jan 11 2024 host-device
-rwxr-xr-x 1 root root 3637994 Sep 22 01:52 host-local
-rwxr-xr-x 1 root root 4315686 Jan 11 2024 ipvlan
-rwxr-xr-x 1 root root 3705893 Sep 22 01:52 loopback
-rwxr-xr-x 1 root root 4349395 Jan 11 2024 macvlan
-rwxr-xr-x 1 root root 4178588 Sep 22 01:52 portmap
-rwxr-xr-x 1 root root 4470977 Jan 11 2024 ptp
-rwxr-xr-x 1 root root 3851218 Jan 11 2024 sbr
-rwxr-xr-x 1 root root 3110828 Jan 11 2024 static
-rwxr-xr-x 1 root root 4371897 Jan 11 2024 tap
-rwxr-xr-x 1 root root 3861557 Sep 22 01:52 tuning
-rwxr-xr-x 1 root root 4310173 Jan 11 2024 vlan
-rwxr-xr-x 1 root root 4001842 Jan 11 2024 vrfAs you can see above, Calico uses BGP (Border Gateway Protocol) for routing between nodes, while each node advertises its pod CIDR range to other nodes. Calico manages a large CIDR (e.g., 172.16.0.0/16) and allocates smaller blocks (e.g., /24) to each node.
Calico uses the Bird routing daemon for BGP implementation. The bird.cfg file shows BGP peer configurations for inter-node communication. Pod and Service CIDRs can be verified using this command.
kubectl cluster-info dump | grep -m 2 -E "cluster-cidr|service-cluster-ip-range"
kubectl get cm -n kube-system kubeadm-config -oyaml | grep -i subnet(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ip -c route
default via 192.168.10.1 dev ens5 proto dhcp src 192.168.10.10 metric 100
172.16.34.0/24 via 192.168.20.100 dev tunl0 proto bird onlink
blackhole 172.16.116.0/24 proto bird
172.16.158.0/24 via 192.168.10.101 dev tunl0 proto bird onlink
172.16.184.0/24 via 192.168.10.102 dev tunl0 proto bird onlink
192.168.0.2 via 192.168.10.1 dev ens5 proto dhcp src 192.168.10.10 metric 100
192.168.10.0/24 dev ens5 proto kernel scope link src 192.168.10.10 metric 100
192.168.10.1 dev ens5 proto dhcp scope link src 192.168.10.10 metric 100(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ip -c addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc mq state UP group default qlen 1000
link/ether 02:47:bd:e3:55:01 brd ff:ff:ff:ff:ff:ff
altname enp0s5
inet 192.168.10.10/24 metric 100 brd 192.168.10.255 scope global dynamic ens5
valid_lft 2978sec preferred_lft 2978sec
inet6 fe80::47:bdff:fee3:5501/64 scope link
valid_lft forever preferred_lft forever
3: tunl0@NONE: <NOARP,UP,LOWER_UP> mtu 8981 qdisc noqueue state UNKNOWN group default qlen 1000
link/ipip 0.0.0.0 brd 0.0.0.0
inet 172.16.116.0/32 scope global tunl0
valid_lft forever preferred_lft foreverAfter installing Calico, a series of IPTables rules are added to your nodes to manage network traffic according to Calico’s policies. These rules are part of Calico’s way of enforcing network policies and managing traffic flow between Pods and external networks.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t filter -L | grep cali
cali-INPUT all -- anywhere anywhere /* cali:Cz_u1IQiXIMmKD4c */
cali-FORWARD all -- anywhere anywhere /* cali:wUHhoiAYhphO9Mso */
ACCEPT all -- anywhere anywhere /* cali:S93hcgKJrXEqnTfs */ /* Policy explicitly accepted packet. */
MARK all -- anywhere anywhere /* cali:mp77cMpurHhyjLrM */ MARK or 0x10000
cali-OUTPUT all -- anywhere anywhere /* cali:tVnHkvAo15HuiPy0 */
Chain cali-FORWARD (1 references)
MARK all -- anywhere anywhere /* cali:vjrMJCRpqwy5oRoX */ MARK and 0xfff1ffff
cali-from-hep-forward all -- anywhere anywhere /* cali:A_sPAO0mcxbT9mOV */
cali-from-wl-dispatch all -- anywhere anywhere /* cali:8ZoYfO5HKXWbB3pk */
cali-to-wl-dispatch all -- anywhere anywhere /* cali:jdEuaPBe14V2hutn */
cali-to-hep-forward all -- anywhere anywhere /* cali:12bc6HljsMKsmfr- */
cali-cidr-block all -- anywhere anywhere /* cali:NOSxoaGx8OIstr1z */
Chain cali-INPUT (1 references)
ACCEPT ipencap-- anywhere anywhere /* cali:PajejrV4aFdkZojI */ /* Allow IPIP packets from Calico hosts */ match-set cali40all-hosts-net src ADDRTYPE match dst-type LOCAL
DROP ipencap-- anywhere anywhere /* cali:_wjq-Yrma8Ly1Svo */ /* Drop IPIP packets from non-Calico hosts */
cali-wl-to-host all -- anywhere anywhere [goto] /* cali:8TZGxLWh_Eiz66wc */
ACCEPT all -- anywhere anywhere /* cali:6McIeIDvPdL6PE1T */
MARK all -- anywhere anywhere /* cali:YGPbrUms7NId8xVa */ MARK and 0xfff0ffff
cali-from-host-endpoint all -- anywhere anywhere /* cali:2gmY7Bg2i0i84Wk_ */
ACCEPT all -- anywhere anywhere /* cali:q-Vz2ZT9iGE331LL */ /* Host endpoint policy accepted packet. */
Chain cali-OUTPUT (1 references)
ACCEPT all -- anywhere anywhere /* cali:Mq1_rAdXXH3YkrzW */
RETURN all -- anywhere anywhere /* cali:69FkRTJDvD5Vu6Vl */
ACCEPT ipencap-- anywhere anywhere /* cali:AnEsmO6bDZbQntWW */ /* Allow IPIP packets to other Calico hosts */ match-set cali40all-hosts-net dst ADDRTYPE match src-type LOCAL
MARK all -- anywhere anywhere /* cali:9e9Uf3GU5tX--Lxy */ MARK and 0xfff0ffff
cali-to-host-endpoint all -- anywhere anywhere /* cali:0f3LDz_VKuHFaA2K */ ! ctstate DNAT
ACCEPT all -- anywhere anywhere /* cali:OgU2f8BVEAZ_fwkq */ /* Host endpoint policy accepted packet. */
Chain cali-cidr-block (1 references)
Chain cali-from-hep-forward (1 references)
Chain cali-from-host-endpoint (1 references)
Chain cali-from-wl-dispatch (2 references)
DROP all -- anywhere anywhere /* cali:zTj6P0TIgYvgz-md */ /* Unknown interface */
Chain cali-to-hep-forward (1 references)
Chain cali-to-host-endpoint (1 references)
Chain cali-to-wl-dispatch (1 references)
DROP all -- anywhere anywhere /* cali:7KNphB1nNHw80nIO */ /* Unknown interface */
Chain cali-wl-to-host (1 references)
cali-from-wl-dispatch all -- anywhere anywhere /* cali:Ee9Sbo10IpVujdIY */
ACCEPT all -- anywhere anywhere /* cali:nSZbcOoG1xPONxb8 */ /* Configured DefaultEndpointToHostAction */(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t nat -L | grep cali
cali-PREROUTING all -- anywhere anywhere /* cali:6gwbT8clXdHdC1b1 */
cali-OUTPUT all -- anywhere anywhere /* cali:tVnHkvAo15HuiPy0 */
cali-POSTROUTING all -- anywhere anywhere /* cali:O3lYWMrLQYEMJtB5 */
Chain cali-OUTPUT (1 references)
cali-fip-dnat all -- anywhere anywhere /* cali:GBTAv2p5CwevEyJm */
Chain cali-POSTROUTING (1 references)
cali-fip-snat all -- anywhere anywhere /* cali:Z-c7XtVd2Bq7s_hA */
cali-nat-outgoing all -- anywhere anywhere /* cali:nYKhEzDlr11Jccal */
MASQUERADE all -- anywhere anywhere /* cali:SXWvdsbh4Mw7wOln */ ADDRTYPE match src-type !LOCAL limit-out ADDRTYPE match src-type LOCAL random-fully
Chain cali-PREROUTING (1 references)
cali-fip-dnat all -- anywhere anywhere /* cali:r6XmIziWUJsdOK6Z */
Chain cali-fip-dnat (2 references)
Chain cali-fip-snat (1 references)
Chain cali-nat-outgoing (1 references)
MASQUERADE all -- anywhere anywhere /* cali:flqWnvo8yq4ULQLa */ match-set cali40masq-ipam-pools src ! match-set cali40all-ipam-pools dst random-fullyBy counting the total number of rules, we can see the extent of Calico’s integration: Approximately 60 rules are added, demonstrating Calico’s comprehensive control over network traffic.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t nat -L | wc -l
126
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -t filter -L | wc -l
108
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~#Calico’s IPAM module handles the allocation of IP addresses to Pods across the cluster. This output shows the total number of IP addresses in the pool, how many are in use, and how many are free. Each /24 block is assigned to a node and widely known as BGP using the bird protocol.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# # 칼리코 IPAM 정보 확인 : 칼리코 CNI 를 사용 한 파드가 생성된 노드에 podCIDR 네트워크 대역 확인 - 링크
calicoctl ipam show
+----------+---------------+-----------+------------+--------------+
| GROUPING | CIDR | IPS TOTAL | IPS IN USE | IPS FREE |
+----------+---------------+-----------+------------+--------------+
| IP Pool | 172.16.0.0/16 | 65536 | 7 (0%) | 65529 (100%) |
+----------+---------------+-----------+------------+--------------+calicoctl ipam show --show-blocks
calicoctl ipam show --show-borrowed
calicoctl ipam show --show-configuration
# 칼리코 IPAM 정보 확인 : 칼리코 CNI 를 사용한 파드가 생성 된 노드에 podCIDR 네트워크 대역 확인 - 링크
calicoctl ipam show
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# # 칼리코 IPAM 정보 확인 : 칼리코 CNI 를 사용 한 파드가 생성된 노드에 podCIDR 네트워크 대역 확인 - 링크
calicoctl ipam show
+----------+---------------+-----------+------------+--------------+
| GROUPING | CIDR | IPS TOTAL | IPS IN USE | IPS FREE |
+----------+---------------+-----------+------------+--------------+
| IP Pool | 172.16.0.0/16 | 65536 | 7 (0%) | 65529 (100%) |
+----------+---------------+-----------+------------+--------------+
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# # Block 는 각 노드에 할당된 podCIDR 정보
calicoctl ipam show --show-blocks
calicoctl ipam show --show-borrowed
calicoctl ipam show --show-configuration
+----------+-----------------+-----------+------------+--------------+
| GROUPING | CIDR | IPS TOTAL | IPS IN USE | IPS FREE |
+----------+-----------------+-----------+------------+--------------+
| IP Pool | 172.16.0.0/16 | 65536 | 7 (0%) | 65529 (100%) |
| Block | 172.16.116.0/24 | 256 | 1 (0%) | 255 (100%) |
| Block | 172.16.158.0/24 | 256 | 4 (2%) | 252 (98%) |
| Block | 172.16.184.0/24 | 256 | 1 (0%) | 255 (100%) |
| Block | 172.16.34.0/24 | 256 | 1 (0%) | 255 (100%) |
+----------+-----------------+-----------+------------+--------------+
+----+----------------+-------+-------------+------+--------------+
| IP | BORROWING-NODE | BLOCK | BLOCK OWNER | TYPE | ALLOCATED-TO |
+----+----------------+-------+-------------+------+--------------+
+----+----------------+-------+-------------+------+--------------+
+--------------------+-------+
| PROPERTY | VALUE |
+--------------------+-------+
| StrictAffinity | false |
| AutoAllocateBlocks | true |
| MaxBlocksPerHost | 0 |
+--------------------+-------+Calico uses BGP (Border Gateway Protocol) for propagating routing information between nodes. The “Peer Address” column lists the IP addresses of the nodes in the mesh. The BGP sessions are established, indicating successful routing configurations.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl node status
Calico process is running.
IPv4 BGP status
+----------------+-------------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+----------------+-------------------+-------+----------+-------------+
| 192.168.20.100 | node-to-node mesh | up | 16:52:54 | Established |
| 192.168.10.101 | node-to-node mesh | up | 16:52:52 | Established |
| 192.168.10.102 | node-to-node mesh | up | 16:52:54 | Established |
+----------------+-------------------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl node checksystem
Checking kernel version...
6.5.0-1024-aws OK
Checking kernel modules...
ip_set OK
ip6_tables OK
ipt_ipvs OK
xt_bpf OK
ipt_REJECT OK
xt_rpfilter OK
xt_icmp OK
ipt_rpfilter OK
ipt_set OK
xt_addrtype OK
xt_conntrack OK
xt_multiport OK
xt_u32 OK
ip_tables OK
vfio-pci OK
nf_conntrack_netlink OK
xt_icmp6 OK
xt_mark OK
xt_set OK
System meets minimum system requirements to run Calico!Displaying IP Pools:
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get ippool -o wide
NAME CIDR NAT IPIPMODE VXLANMODE DISABLED DISABLEBGPEXPORT SELECTOR
default-ipv4-ippool 172.16.0.0/16 true Always Never false false all()Retrieve the Pod and Service CIDR ranges:
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl cluster-info dump | grep -m 2 -E "cluster-cidr|service-cluster-ip-range"
kubectl get cm -n kube-system kubeadm-config -oyaml | grep -i subnet
"--service-cluster-ip-range=10.200.1.0/24",
"--cluster-cidr=172.16.0.0/16",
podSubnet: 172.16.0.0/16

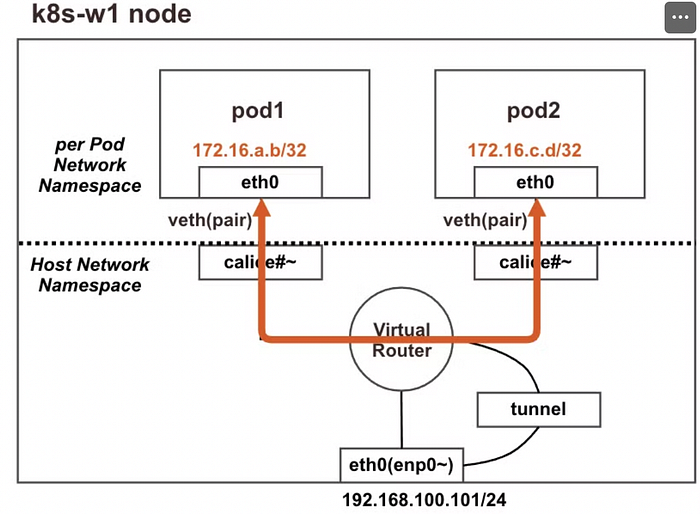

serviceSubnet: 10.200.1.0/24Workload endpoints represent the network interfaces of Pods. This information includes the namespace, workload name (Pod name), node, assigned IP addresses, and network interfaces.

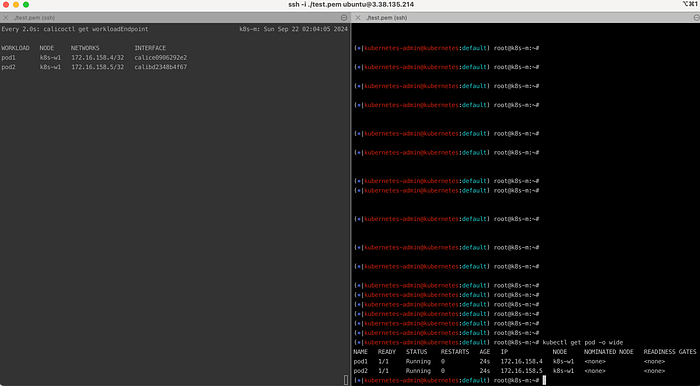

(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get workloadEndpoint
calicoctl get workloadEndpoint -A
calicoctl get workloadEndpoint -o wide -A
WORKLOAD NODE NETWORKS INTERFACE
NAMESPACE WORKLOAD NODE NETWORKS INTERFACE
kube-system calico-kube-controllers-77d59654f4-xgt7f k8s-w1 172.16.158.2/32 cali1a6c68cfc2f
kube-system coredns-55cb58b774-djmlk k8s-w1 172.16.158.3/32 cali7760be1255d
kube-system coredns-55cb58b774-z482n k8s-w1 172.16.158.1/32 cali1429ee5e74b
NAMESPACE NAME WORKLOAD NODE NETWORKS INTERFACE PROFILES NATS
kube-system k8s--w1-k8s-calico--kube--controllers--77d59654f4--xgt7f-eth0 calico-kube-controllers-77d59654f4-xgt7f k8s-w1 172.16.158.2/32 cali1a6c68cfc2f kns.kube-system,ksa.kube-system.calico-kube-controllers
kube-system k8s--w1-k8s-coredns--55cb58b774--djmlk-eth0 coredns-55cb58b774-djmlk k8s-w1 172.16.158.3/32 cali7760be1255d kns.kube-system,ksa.kube-system.coredns
kube-system k8s--w1-k8s-coredns--55cb58b774--z482n-eth0 coredns-55cb58b774-z482n k8s-w1 172.16.158.1/32 cali1429ee5e74b kns.kube-system,ksa.kube-system.corednsCalico uses the bird Internet Routing Daemon for BGP route distribution. The calico-node DaemonSet runs bird, and you can inspect its configuration. This configuration sets up BGP sessions with other nodes, allowing for the distribution of routing information.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# find / -name bird.cfg
/run/containerd/io.containerd.runtime.v2.task/k8s.io/034e5026927aae33059fe64deaf8a573bbb5491a605440ac1a5a4b915ffa68c6/rootfs/etc/calico/confd/config/bird.cfg
/var/lib/containerd/io.containerd.snapshotter.v1.overlayfs/snapshots/54/fs/etc/calico/confd/config/bird.cfg(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# cat /run/containerd/io.containerd.runtime.v2.task/k8s.io/034e5026927aae33059fe64deaf8a573bbb5491a605440ac1a5a4b915ffa68c6/rootfs/etc/calico/confd/config/bird.cfg
function apply_communities ()
{
}
# Generated by confd
include "bird_aggr.cfg";
include "bird_ipam.cfg";
router id 192.168.10.10;
# Configure synchronization between routing tables and kernel.
protocol kernel {
learn; # Learn all alien routes from the kernel
persist; # Don't remove routes on bird shutdown
scan time 2; # Scan kernel routing table every 2 seconds
import all;
export filter calico_kernel_programming; # Default is export none
graceful restart; # Turn on graceful restart to reduce potential flaps in
# routes when reloading BIRD configuration. With a full
# automatic mesh, there is no way to prevent BGP from
# flapping since multiple nodes update their BGP
# configuration at the same time, GR is not guaranteed to
# work correctly in this scenario.
merge paths on; # Allow export multipath routes (ECMP)
}
# Watch interface up/down events.
protocol device {
debug { states };
scan time 2; # Scan interfaces every 2 seconds
}
protocol direct {
debug { states };
interface -"cali*", -"kube-ipvs*", "*"; # Exclude cali* and kube-ipvs* but
# include everything else. In
# IPVS-mode, kube-proxy creates a
# kube-ipvs0 interface. We exclude
# kube-ipvs0 because this interface
# gets an address for every in use
# cluster IP. We use static routes
# for when we legitimately want to
# export cluster IPs.
}
# Template for all BGP clients
template bgp bgp_template {
debug { states };
description "Connection to BGP peer";
local as 64512;
gateway recursive; # This should be the default, but just in case.
add paths on;
graceful restart; # See comment in kernel section about graceful restart.
connect delay time 2;
connect retry time 5;
error wait time 5,30;
}
# -------------- BGP Filters ------------------
# No v4 BGPFilters configured
# ------------- Node-to-node mesh -------------
# For peer /bgp/v1/host/k8s-m/ip_addr_v4
# Skipping ourselves (192.168.10.10)
# For peer /bgp/v1/host/k8s-w0/ip_addr_v4
protocol bgp Mesh_192_168_20_100 from bgp_template {
neighbor 192.168.20.100 as 64512;
source address 192.168.10.10; # The local address we use for the TCP connection
import all; # Import all routes, since we don't know what the upstream
# topology is and therefore have to trust the ToR/RR.
export filter {
calico_export_to_bgp_peers(true);
reject;
}; # Only want to export routes for workloads.
passive on; # Mesh is unidirectional, peer will connect to us.
}
# For peer /bgp/v1/host/k8s-w1/ip_addr_v4
protocol bgp Mesh_192_168_10_101 from bgp_template {
neighbor 192.168.10.101 as 64512;
source address 192.168.10.10; # The local address we use for the TCP connection
import all; # Import all routes, since we don't know what the upstream
# topology is and therefore have to trust the ToR/RR.
export filter {
calico_export_to_bgp_peers(true);
reject;
}; # Only want to export routes for workloads.
passive on; # Mesh is unidirectional, peer will connect to us.
}
# For peer /bgp/v1/host/k8s-w2/ip_addr_v4
protocol bgp Mesh_192_168_10_102 from bgp_template {
neighbor 192.168.10.102 as 64512;
source address 192.168.10.10; # The local address we use for the TCP connection
import all; # Import all routes, since we don't know what the upstream
# topology is and therefore have to trust the ToR/RR.
export filter {
calico_export_to_bgp_peers(true);
reject;
}; # Only want to export routes for workloads.
passive on; # Mesh is unidirectional, peer will connect to us.
}
# ------------- Global peers -------------
# No global peers configured.
# ------------- Node-specific peers -------------
# No node-specific peers configured.Understanding Intra-Node Communication
When two Pods are scheduled on the same node, they can communicate directly without involving any tunnel interfaces. This direct communication is managed by IPTables FORWARD rules. The Calico CNI plugin creates cali* interfaces on the node, and with Proxy ARP settings, the Pods receive the MAC address of the gateway they should communicate with. The tunnel interface on the node is not involved in this intra-node communication.
To test intra-node communication, we’ll deploy two Pods on the same node by specifying the nodeName field in their configurations. Here are the YAML configurations for pod1 and pod2.
apiVersion: v1
kind: Pod
metadata:
name: pod1
spec:
nodeName: k8s-w1 # Note: Replace k8s-w1 with the name of your node where you want to deploy these Pods.
containers:
- name: pod1
image: nicolaka/netshoot # 이미지는 네트워크 장애 처리에 유용한 이미지를 사용합니다
command: ["tail"]
args: ["-f", "/dev/null"]
terminationGracePeriodSeconds: 0
---
apiVersion: v1
kind: Pod
metadata:
name: pod2
spec:
nodeName: k8s-w1
containers:
- name: pod2
image: nicolaka/netshoot
command: ["tail"]
args: ["-f", "/dev/null"]
terminationGracePeriodSeconds: 0curl -s -O https://raw.githubusercontent.com/gasida/NDKS/main/4/node1-pod2.yaml
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# curl -s -O https://raw.githubusercontent.com/gasida/NDKS/main/4/node1-pod2.yaml
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl apply -f node1-pod2.yaml
pod/pod1 created
pod/pod2 created
After deploying the Pods, you may notice changes in the node’s network interfaces and routing tables:
- New
cali*Interfaces: Calico creates new network interfaces (e.g.,cali1234567890) for each Pod. - Routing Table Entries: Two new routing table entries are added, routing traffic to the Pods’ IP addresses via the respective
cali*interfaces.
root@k8s-w1:~# ip -c link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: ens5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc mq state UP mode DEFAULT group default qlen 1000
link/ether 02:76:c7:5b:75:69 brd ff:ff:ff:ff:ff:ff
altname enp0s5
3: tunl0@NONE: <NOARP,UP,LOWER_UP> mtu 8981 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/ipip 0.0.0.0 brd 0.0.0.0
6: cali1429ee5e74b@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-2a0b7452-fc2d-7a4d-be91-4e22eef29a0f
7: cali1a6c68cfc2f@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-c36e8e9d-1ad0-4883-2e09-50d1edd399ea
8: cali7760be1255d@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-56441a7d-579a-877b-ed76-23226e7cd6a8
9: calice0906292e2@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-a37fb783-52ac-b62e-8350-ee7d7097cf73
10: calibd2348b4f67@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-c744e9a9-de5d-377f-54b4-1c8ee5b50459root@k8s-w1:~# ip -c route
default via 192.168.10.1 dev ens5 proto dhcp src 192.168.10.101 metric 100
172.16.34.0/24 via 192.168.20.100 dev tunl0 proto bird onlink
172.16.116.0/24 via 192.168.10.10 dev tunl0 proto bird onlink
blackhole 172.16.158.0/24 proto bird
172.16.158.1 dev cali1429ee5e74b scope link
172.16.158.2 dev cali1a6c68cfc2f scope link
172.16.158.3 dev cali7760be1255d scope link
172.16.158.4 dev calice0906292e2 scope link
172.16.158.5 dev calibd2348b4f67 scope link
172.16.184.0/24 via 192.168.10.102 dev tunl0 proto bird onlink
192.168.0.2 via 192.168.10.1 dev ens5 proto dhcp src 192.168.10.101 metric 100
192.168.10.0/24 dev ens5 proto kernel scope link src 192.168.10.101 metric 100
192.168.10.1 dev ens5 proto dhcp scope link src 192.168.10.101 metric 100The Pod has a default route via 169.254.1.1, which is a virtual router provided by Calico for intra-node communication.
# 네트워크 인터페이스 정보 확인 : calice#~ 2개 추가됨!
# 각각 net ns(네임스페이스) 0, 1로 호스트와 구별됨
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl exec -it pod1 -n default /bin/bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
pod1:~# ip -c link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: tunl0@NONE: <NOARP> mtu 1480 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ipip 0.0.0.0 brd 0.0.0.0
3: eth0@if9: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP mode DEFAULT group default qlen 1000
link/ether a2:06:d7:da:d4:18 brd ff:ff:ff:ff:ff:ff link-netnsid 0
pod1:~# ip -c route
default via 169.254.1.1 dev eth0
169.254.1.1 dev eth0 scope link
pod1:~# route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 169.254.1.1 0.0.0.0 UG 0 0 0 eth0

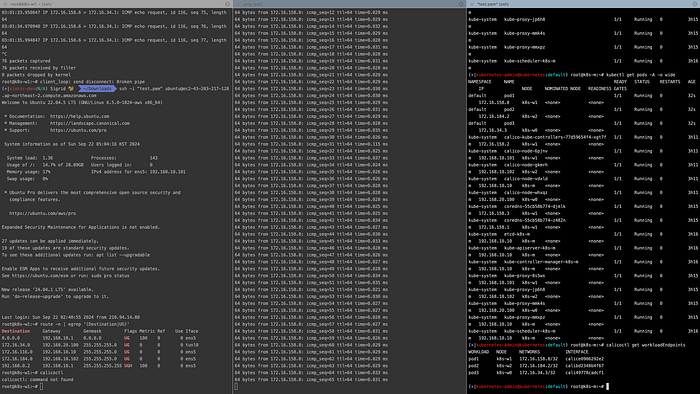

169.254.1.1 0.0.0.0 255.255.255.255 UH 0 0 0 eth0pod1:~# ping -c 10 172.16.158.4
PING 172.16.158.4 (172.16.158.4) 56(84) bytes of data.
64 bytes from 172.16.158.4: icmp_seq=1 ttl=64 time=0.019 ms
64 bytes from 172.16.158.4: icmp_seq=2 ttl=64 time=0.027 ms
64 bytes from 172.16.158.4: icmp_seq=3 ttl=64 time=0.028 ms
64 bytes from 172.16.158.4: icmp_seq=4 ttl=64 time=0.030 ms
64 bytes from 172.16.158.4: icmp_seq=5 ttl=64 time=0.033 ms
64 bytes from 172.16.158.4: icmp_seq=6 ttl=64 time=0.029 ms
^C
--- 172.16.158.4 ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 5123ms
rtt min/avg/max/mdev = 0.019/0.027/0.033/0.004 msTesting Connectivity to the Other Pod
From pod1, ping pod2 using its IP address (e.g., 172.16.158.4): The successful ping confirms that Pods on the same node can communicate directly.
Understanding the Pod IP Address:
172.16.158.4is the IP address ofpod2.- It belongs to the
172.16.158.0/24subnet assigned by Calico. - The low latency indicates that the Pods are on the same node.
root@k8s-w1:~# tcpdump -i $VETH1 -nnip addr show
tcpdump: -nnip: No such device exists
(SIOCGIFHWADDR: No such device)
root@k8s-w1:~# ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc mq state UP group default qlen 1000
link/ether 02:76:c7:5b:75:69 brd ff:ff:ff:ff:ff:ff
altname enp0s5
inet 192.168.10.101/24 metric 100 brd 192.168.10.255 scope global dynamic ens5
valid_lft 1850sec preferred_lft 1850sec
inet6 fe80::76:c7ff:fe5b:7569/64 scope link
valid_lft forever preferred_lft forever
3: tunl0@NONE: <NOARP,UP,LOWER_UP> mtu 8981 qdisc noqueue state UNKNOWN group default qlen 1000
link/ipip 0.0.0.0 brd 0.0.0.0
inet 172.16.158.0/32 scope global tunl0
valid_lft forever preferred_lft forever
6: cali1429ee5e74b@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-2a0b7452-fc2d-7a4d-be91-4e22eef29a0f
inet6 fe80::ecee:eeff:feee:eeee/64 scope link
valid_lft forever preferred_lft forever
7: cali1a6c68cfc2f@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-c36e8e9d-1ad0-4883-2e09-50d1edd399ea
inet6 fe80::ecee:eeff:feee:eeee/64 scope link
valid_lft forever preferred_lft forever
8: cali7760be1255d@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-56441a7d-579a-877b-ed76-23226e7cd6a8
inet6 fe80::ecee:eeff:feee:eeee/64 scope link
valid_lft forever preferred_lft forever
9: calice0906292e2@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-a37fb783-52ac-b62e-8350-ee7d7097cf73
inet6 fe80::ecee:eeff:feee:eeee/64 scope link
valid_lft forever preferred_lft forever
10: calibd2348b4f67@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8981 qdisc noqueue state UP group default qlen 1000
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-c744e9a9-de5d-377f-54b4-1c8ee5b50459
inet6 fe80::ecee:eeff:feee:eeee/64 scope link
valid_lft forever preferred_lft forever
root@k8s-w1:~#To observe the network traffic between the Pods, we can use tcpdump on the host. On the node, list the network interfaces and identify the cali* interface corresponding to pod1 or pod2. You can use tcpdump to capture network packets and observe the communication between the Pods.
root@k8s-w1:~# tcpdump -i cali1429ee5e74b -nn
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on cali1429ee5e74b, link-type EN10MB (Ethernet), snapshot length 262144 bytes
02:16:36.785077 IP 192.168.10.101.32948 > 172.16.158.1.8080: Flags [S], seq 1995566909, win 62587, options [mss 8941,sackOK,TS val 2096407014 ecr 0,nop,wscale 7], length 0
02:16:36.785102 IP 172.16.158.1.8080 > 192.168.10.101.32948: Flags [S.], seq 3291293760, ack 1995566910, win 62503, options [mss 8941,sackOK,TS val 3214329542 ecr 2096407014,nop,wscale 7], length 0
02:16:36.785135 IP 192.168.10.101.32948 > 172.16.158.1.8080: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096407014 ecr 3214329542], length 0
02:16:36.785280 IP 192.168.10.101.42932 > 172.16.158.1.8181: Flags [S], seq 1567875025, win 62587, options [mss 8941,sackOK,TS val 2096407014 ecr 0,nop,wscale 7], length 0
02:16:36.785289 IP 172.16.158.1.8181 > 192.168.10.101.42932: Flags [S.], seq 37504632, ack 1567875026, win 62503, options [mss 8941,sackOK,TS val 3214329542 ecr 2096407014,nop,wscale 7], length 0
02:16:36.785303 IP 192.168.10.101.42932 > 172.16.158.1.8181: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096407014 ecr 3214329542], length 0
02:16:36.785417 IP 192.168.10.101.42932 > 172.16.158.1.8181: Flags [P.], seq 1:110, ack 1, win 489, options [nop,nop,TS val 2096407014 ecr 3214329542], length 109
02:16:36.785424 IP 172.16.158.1.8181 > 192.168.10.101.42932: Flags [.], ack 110, win 488, options [nop,nop,TS val 3214329542 ecr 2096407014], length 0
02:16:36.785455 IP 192.168.10.101.32948 > 172.16.158.1.8080: Flags [P.], seq 1:111, ack 1, win 489, options [nop,nop,TS val 2096407014 ecr 3214329542], length 110: HTTP: GET /health HTTP/1.1
02:16:36.785459 IP 172.16.158.1.8080 > 192.168.10.101.32948: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214329542 ecr 2096407014], length 0
02:16:36.788880 IP 172.16.158.1.8181 > 192.168.10.101.42932: Flags [P.], seq 1:138, ack 110, win 488, options [nop,nop,TS val 3214329546 ecr 2096407014], length 137
02:16:36.788934 IP 192.168.10.101.42932 > 172.16.158.1.8181: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096407018 ecr 3214329546], length 0
02:16:36.788976 IP 172.16.158.1.8181 > 192.168.10.101.42932: Flags [F.], seq 138, ack 110, win 488, options [nop,nop,TS val 3214329546 ecr 2096407018], length 0
02:16:36.789087 IP 172.16.158.1.8080 > 192.168.10.101.32948: Flags [P.], seq 1:138, ack 111, win 488, options [nop,nop,TS val 3214329546 ecr 2096407014], length 137: HTTP: HTTP/1.1 200 OK
02:16:36.789115 IP 192.168.10.101.32948 > 172.16.158.1.8080: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096407018 ecr 3214329546], length 0
02:16:36.789142 IP 172.16.158.1.8080 > 192.168.10.101.32948: Flags [F.], seq 138, ack 111, win 488, options [nop,nop,TS val 3214329546 ecr 2096407018], length 0
02:16:36.789353 IP 192.168.10.101.32948 > 172.16.158.1.8080: Flags [F.], seq 111, ack 139, win 488, options [nop,nop,TS val 2096407018 ecr 3214329546], length 0
02:16:36.789377 IP 172.16.158.1.8080 > 192.168.10.101.32948: Flags [.], ack 112, win 488, options [nop,nop,TS val 3214329546 ecr 2096407018], length 0
02:16:36.789595 IP 192.168.10.101.42932 > 172.16.158.1.8181: Flags [F.], seq 110, ack 139, win 488, options [nop,nop,TS val 2096407018 ecr 3214329546], length 0
02:16:36.789607 IP 172.16.158.1.8181 > 192.168.10.101.42932: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214329546 ecr 2096407018], length 0Source and Destination IPs:
192.168.10.101: Node's IP address.172.16.158.1: Pod's IP address.
Ports:
- Communication occurs over ports
8080and8181. - The standard three-way handshake is observed.
- An HTTP GET request is sent to
/health, indicating a health check. - Connection Termination:
- Proper connection termination with
FINpackets.
How Inter-Node Communication Works
When Pods are on different nodes, Calico uses IP-in-IP (IPIP) tunneling to facilitate communication. Here’s how it works:
- BGP Advertisement: Each node advertises its Pod network range via BGP using the BIRD routing daemon.
- Routing Table Updates: Calico’s Felix agent updates the host’s routing table with routes to the Pod networks on other nodes.
- IPIP Tunnel: Traffic between Pods on different nodes is encapsulated in an IPIP tunnel. The outer IP header contains the source and destination node IPs, and the inner IP header contains the source and destination Pod IPs.
sudo tcpdump -i any proto 4 -w ipip_traffic.pcapHow Pods Access External Networks
When a Pod communicates with an external internet resource, the traffic is NAT’ed (Network Address Translation) using the node’s network interface IP. Here’s the process:
- Outbound NAT: Calico’s default configuration enables outbound NAT (
natOutgoing: truein the IP pool configuration). - IPTables MASQUERADE Rule: An IPTables
MASQUERADErule is applied, which replaces the source IP of the Pod with the node's IP when traffic exits the node. - No Tunnel Involvement: The tunnel interface is not involved in this communication.
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# iptables -n -t nat --list cali-nat-outgoing
Chain cali-nat-outgoing (1 references)
target prot opt source destination
MASQUERADE all -- 0.0.0.0/0 0.0.0.0/0 /* cali:flqWnvo8yq4ULQLa */ match-set cali40masq-ipam-pools src ! match-set cali40all-ipam-pools dst random-fully(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# curl -O https://raw.githubusercontent.com/gasida/NDKS/main/4/node1-pod1.yaml
kubectl apply -f node1-pod1.yaml
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 218 100 218 0 0 411 0 --:--:-- --:--:-- --:--:-- 410
pod/pod1 unchanged
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod1 1/1 Running 0 16m 172.16.158.4 k8s-w1 <none> <none>
pod2 1/1 Running 0 16m 172.16.158.5 k8s-w1 <none> <none>Enter the Pod’s shell and attempt to reach an external service, such as Google’s DNS server. You will observe that the source IP address is the node’s IP, not the Pod’s IP. This confirms that NAT is translating the Pod’s IP to the node’s IP for outbound traffic.
root@k8s-w1:~# iptables -n -v -t nat --list cali-nat-outgoing
Chain cali-nat-outgoing (1 references)
pkts bytes target prot opt in out source destination
11 756 MASQUERADE all -- * * 0.0.0.0/0 0.0.0.0/0 /* cali:flqWnvo8yq4ULQLa */ match-set cali40masq-ipam-pools src ! match-set cali40all-ipam-pools dst random-fullypod1:~# ping -c 10 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=104 time=33.6 ms
64 bytes from 8.8.8.8: icmp_seq=5 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=6 ttl=104 time=33.6 ms
64 bytes from 8.8.8.8: icmp_seq=7 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=8 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=9 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=10 ttl=104 time=33.5 ms
--- 8.8.8.8 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9014ms
rtt min/avg/max/mdev = 33.456/33.500/33.559/0.034 ms
pod1:~# ping -c 10 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=5 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=6 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=7 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=8 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=9 ttl=104 time=33.5 ms
64 bytes from 8.8.8.8: icmp_seq=10 ttl=104 time=33.5 ms(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod1 1/1 Running 0 18m 172.16.158.4 k8s-w1 <none> <none>
pod2 1/1 Running 0 18m 172.16.158.5 k8s-w1 <none> <none>
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
k8s-m Ready control-plane 34m v1.30.5 192.168.10.10 <none> Ubuntu 22.04.5 LTS 6.5.0-1024-aws containerd://1.7.22
k8s-w0 Ready <none> 33m v1.30.5 192.168.20.100 <none> Ubuntu 22.04.5 LTS 6.5.0-1024-aws containerd://1.7.22
k8s-w1 Ready <none> 33m v1.30.5 192.168.10.101 <none> Ubuntu 22.04.5 LTS 6.5.0-1024-aws containerd://1.7.22
k8s-w2 Ready <none> 33m v1.30.5 192.168.10.102 <none> Ubuntu 22.04.5 LTS 6.5.0-1024-aws containerd://1.7.2202:20:46.788390 IP 172.16.158.1.8181 > 192.168.10.101.58390: Flags [F.], seq 138, ack 110, win 488, options [nop,nop,TS val 3214579545 ecr 2096657017], length 0
02:20:46.788390 IP 172.16.158.1.8080 > 192.168.10.101.49504: Flags [F.], seq 138, ack 111, win 488, options [nop,nop,TS val 3214579545 ecr 2096657017], length 0
02:20:46.788529 IP 192.168.10.101.58390 > 172.16.158.1.8181: Flags [F.], seq 110, ack 139, win 488, options [nop,nop,TS val 2096657017 ecr 3214579545], length 0
02:20:46.788545 IP 172.16.158.1.8181 > 192.168.10.101.58390: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214579545 ecr 2096657017], length 0
02:20:46.788639 IP 192.168.10.101.49504 > 172.16.158.1.8080: Flags [F.], seq 111, ack 139, win 488, options [nop,nop,TS val 2096657017 ecr 3214579545], length 0
02:20:46.788649 IP 172.16.158.1.8080 > 192.168.10.101.49504: Flags [.], ack 112, win 488, options [nop,nop,TS val 3214579545 ecr 2096657017], length 0
02:20:51.965220 IP 10.200.1.1.443 > 172.16.158.1.55696: Flags [P.], seq 385:503, ack 157, win 472, options [nop,nop,TS val 760412201 ecr 2186959604], length 118
02:20:51.965241 IP 172.16.158.1.55696 > 10.200.1.1.443: Flags [.], ack 503, win 443, options [nop,nop,TS val 2186969545 ecr 760412201], length 0
02:20:56.784864 IP 192.168.10.101.60740 > 172.16.158.1.8080: Flags [S], seq 1174607584, win 62587, options [mss 8941,sackOK,TS val 2096667014 ecr 0,nop,wscale 7], length 0
02:20:56.784886 IP 172.16.158.1.8080 > 192.168.10.101.60740: Flags [S.], seq 775339285, ack 1174607585, win 62503, options [mss 8941,sackOK,TS val 3214589542 ecr 2096667014,nop,wscale 7], length 0
02:20:56.784912 IP 192.168.10.101.60740 > 172.16.158.1.8080: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096667014 ecr 3214589542], length 0
02:20:56.785048 IP 192.168.10.101.51100 > 172.16.158.1.8181: Flags [S], seq 1218467495, win 62587, options [mss 8941,sackOK,TS val 2096667014 ecr 0,nop,wscale 7], length 0
02:20:56.785056 IP 172.16.158.1.8181 > 192.168.10.101.51100: Flags [S.], seq 1228248012, ack 1218467496, win 62503, options [mss 8941,sackOK,TS val 3214589542 ecr 2096667014,nop,wscale 7], length 0
02:20:56.785069 IP 192.168.10.101.51100 > 172.16.158.1.8181: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096667014 ecr 3214589542], length 0
02:20:56.785291 IP 192.168.10.101.51100 > 172.16.158.1.8181: Flags [P.], seq 1:110, ack 1, win 489, options [nop,nop,TS val 2096667014 ecr 3214589542], length 109
02:20:56.785300 IP 172.16.158.1.8181 > 192.168.10.101.51100: Flags [.], ack 110, win 488, options [nop,nop,TS val 3214589542 ecr 2096667014], length 0
02:20:56.785352 IP 192.168.10.101.60740 > 172.16.158.1.8080: Flags [P.], seq 1:111, ack 1, win 489, options [nop,nop,TS val 2096667014 ecr 3214589542], length 110: HTTP: GET /health HTTP/1.1
02:20:56.785358 IP 172.16.158.1.8080 > 192.168.10.101.60740: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214589542 ecr 2096667014], length 0
02:20:56.789029 IP 172.16.158.1.8080 > 192.168.10.101.60740: Flags [P.], seq 1:138, ack 111, win 488, options [nop,nop,TS val 3214589546 ecr 2096667014], length 137: HTTP: HTTP/1.1 200 OK
02:20:56.789029 IP 172.16.158.1.8181 > 192.168.10.101.51100: Flags [P.], seq 1:138, ack 110, win 488, options [nop,nop,TS val 3214589546 ecr 2096667014], length 137
02:20:56.789061 IP 192.168.10.101.60740 > 172.16.158.1.8080: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096667018 ecr 3214589546], length 0
02:20:56.789061 IP 192.168.10.101.51100 > 172.16.158.1.8181: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096667018 ecr 3214589546], length 0
02:20:56.789089 IP 172.16.158.1.8181 > 192.168.10.101.51100: Flags [F.], seq 138, ack 110, win 488, options [nop,nop,TS val 3214589546 ecr 2096667018], length 0
02:20:56.789089 IP 172.16.158.1.8080 > 192.168.10.101.60740: Flags [F.], seq 138, ack 111, win 488, options [nop,nop,TS val 3214589546 ecr 2096667018], length 0
02:20:56.789224 IP 192.168.10.101.60740 > 172.16.158.1.8080: Flags [F.], seq 111, ack 139, win 488, options [nop,nop,TS val 2096667018 ecr 3214589546], length 0
02:20:56.789239 IP 172.16.158.1.8080 > 192.168.10.101.60740: Flags [.], ack 112, win 488, options [nop,nop,TS val 3214589546 ecr 2096667018], length 0
02:20:56.789360 IP 192.168.10.101.51100 > 172.16.158.1.8181: Flags [F.], seq 110, ack 139, win 488, options [nop,nop,TS val 2096667018 ecr 3214589546], length 0
02:20:56.789370 IP 172.16.158.1.8181 > 192.168.10.101.51100: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214589546 ecr 2096667018], length 0
02:21:06.784912 IP 192.168.10.101.48680 > 172.16.158.1.8080: Flags [S], seq 1952863696, win 62587, options [mss 8941,sackOK,TS val 2096677014 ecr 0,nop,wscale 7], length 0
02:21:06.784936 IP 172.16.158.1.8080 > 192.168.10.101.48680: Flags [S.], seq 3873586601, ack 1952863697, win 62503, options [mss 8941,sackOK,TS val 3214599542 ecr 2096677014,nop,wscale 7], length 0
02:21:06.784965 IP 192.168.10.101.48680 > 172.16.158.1.8080: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096677014 ecr 3214599542], length 0
02:21:06.785407 IP 192.168.10.101.48680 > 172.16.158.1.8080: Flags [P.], seq 1:111, ack 1, win 489, options [nop,nop,TS val 2096677014 ecr 3214599542], length 110: HTTP: GET /health HTTP/1.1
02:21:06.785422 IP 172.16.158.1.8080 > 192.168.10.101.48680: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214599542 ecr 2096677014], length 0
02:21:06.785542 IP 172.16.158.1.8080 > 192.168.10.101.48680: Flags [P.], seq 1:138, ack 111, win 488, options [nop,nop,TS val 3214599542 ecr 2096677014], length 137: HTTP: HTTP/1.1 200 OK
02:21:06.785574 IP 172.16.158.1.8080 > 192.168.10.101.48680: Flags [F.], seq 138, ack 111, win 488, options [nop,nop,TS val 3214599542 ecr 2096677014], length 0
02:21:06.785627 IP 192.168.10.101.36582 > 172.16.158.1.8181: Flags [S], seq 1725663695, win 62587, options [mss 8941,sackOK,TS val 2096677014 ecr 0,nop,wscale 7], length 0
02:21:06.785636 IP 172.16.158.1.8181 > 192.168.10.101.36582: Flags [S.], seq 2364610350, ack 1725663696, win 62503, options [mss 8941,sackOK,TS val 3214599542 ecr 2096677014,nop,wscale 7], length 0
02:21:06.785649 IP 192.168.10.101.36582 > 172.16.158.1.8181: Flags [.], ack 1, win 489, options [nop,nop,TS val 2096677014 ecr 3214599542], length 0
02:21:06.785735 IP 192.168.10.101.36582 > 172.16.158.1.8181: Flags [P.], seq 1:110, ack 1, win 489, options [nop,nop,TS val 2096677014 ecr 3214599542], length 109
02:21:06.785740 IP 172.16.158.1.8181 > 192.168.10.101.36582: Flags [.], ack 110, win 488, options [nop,nop,TS val 3214599542 ecr 2096677014], length 0
02:21:06.785886 IP 172.16.158.1.8181 > 192.168.10.101.36582: Flags [P.], seq 1:138, ack 110, win 488, options [nop,nop,TS val 3214599543 ecr 2096677014], length 137
02:21:06.785906 IP 192.168.10.101.36582 > 172.16.158.1.8181: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096677015 ecr 3214599543], length 0
02:21:06.785946 IP 172.16.158.1.8181 > 192.168.10.101.36582: Flags [F.], seq 138, ack 110, win 488, options [nop,nop,TS val 3214599543 ecr 2096677015], length 0
02:21:06.785975 IP 192.168.10.101.48680 > 172.16.158.1.8080: Flags [.], ack 138, win 488, options [nop,nop,TS val 2096677015 ecr 3214599542], length 0
02:21:06.786134 IP 192.168.10.101.48680 > 172.16.158.1.8080: Flags [F.], seq 111, ack 139, win 488, options [nop,nop,TS val 2096677015 ecr 3214599542], length 0
02:21:06.786147 IP 172.16.158.1.8080 > 192.168.10.101.48680: Flags [.], ack 112, win 488, options [nop,nop,TS val 3214599543 ecr 2096677015], length 0
02:21:06.786246 IP 192.168.10.101.36582 > 172.16.158.1.8181: Flags [F.], seq 110, ack 139, win 488, options [nop,nop,TS val 2096677015 ecr 3214599543], length 0
02:21:06.786255 IP 172.16.158.1.8181 > 192.168.10.101.36582: Flags [.], ack 111, win 488, options [nop,nop,TS val 3214599543 ecr 2096677015], length 0Configuring Calico Network Modes
Calico offers several networking modes to accommodate various environments and requirements:
a. IP-in-IP (IPIP) Mode
- Description: Uses IP-in-IP encapsulation to tunnel Pod traffic between nodes.
- Usage: Default mode in Calico; suitable when direct routing between nodes is not possible.
- Interface: Utilizes the
tunl0interface for encapsulated packets. - Pros: Simplifies network configuration; no need for underlying network changes.
- Cons: Adds overhead due to encapsulation; not supported in some cloud environments like Azure.
b. Direct Routing Mode
- Description: Pods communicate directly without encapsulation, using the underlying network for routing.
- Usage: Preferred for performance when nodes are on the same Layer 2 network and can route Pod CIDRs.
- Pros: Best performance; reduced overhead.
- Cons: Requires network infrastructure to route Pod CIDRs; may not be feasible in all environments.
c. CrossSubnet Mode
- Description: Combines IPIP and Direct modes. Uses direct routing within the same subnet and IPIP tunneling across different subnets.
- Usage: Ideal for environments with multiple subnets where intra-subnet communication can be direct.
- Pros: Balances performance and compatibility.
- Cons: Requires proper subnet configuration and understanding of network topology.
d. VXLAN Mode
- Description: Uses VXLAN encapsulation to tunnel traffic between nodes, encapsulating Layer 2 frames over UDP.
- Usage: Useful in environments where IPIP is not supported (e.g., Azure).
- Pros: Supported in more environments; handles broadcast and multicast traffic.
- Cons: Slightly more complex; adds UDP overhead.
e. WireGuard Encryption
- Description: Encrypts Pod-to-Pod traffic between nodes using WireGuard VPN.
- Usage: Enhances security by encrypting traffic over any of the above modes.
- Pros: Adds encryption without significant performance impact.
- Cons: Requires additional configuration; not all environments support WireGuard natively.

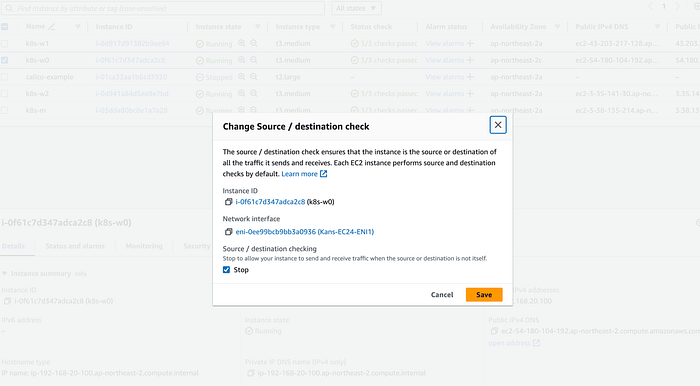

In AWS, by default, the network interface card (NIC) drops any traffic that doesn’t originate from or is not destined to the instance’s IP address. Since Calico assigns IP addresses to pods that are different from the node’s IP, we need to disable the Source/Destination Check feature on the EC2 instances to allow traffic to and from pod IPs.
aws ec2 modify-instance-attribute --instance-id <INSTANCE_ID> --source-dest-check "{\"Value\": false}"
By default, Calico uses IP-in-IP (IPIP) encapsulation for cross-node pod communication. In Direct mode, Calico disables encapsulation, and traffic between nodes is routed directly, assuming the underlying network supports routing pod IPs.
First, check the current IPPool configuration: Here, IPIPMODE is set to Always, meaning IPIP encapsulation is always used. To switch to Direct mode, we need to change IPIPMODE to Never. On the node, check the routing table to see if the routes now use the physical interface (e.g., ens5 or enp0s8) instead of the tunnel interface (tunl0).
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get ippool -o wide
NAME CIDR NAT IPIPMODE VXLANMODE DISABLED DISABLEBGPEXPORT SELECTOR
default-ipv4-ippool 172.16.0.0/16 true Always Never false false all()Every 2.0s: route -n | egrep '(Destination|UG)' k8s-w1: Sun Sep 22 02:33:00 2024
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.10.1 0.0.0.0 UG 100 0 0 ens5
172.16.34.0 192.168.20.100 255.255.255.0 UG 0 0 0 tunl0
172.16.116.0 192.168.10.10 255.255.255.0 UG 0 0 0 tunl0
172.16.184.0 192.168.10.102 255.255.255.0 UG 0 0 0 tunl0
192.168.0.2 192.168.10.1 255.255.255.255 UGH 100 0 0 ens5(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get ippool default-ipv4-ippool -o yaml | sed -e "s/ipipMode: Always/ipipMode: Never/" | calicoctl apply -f -
Successfully applied 1 'IPPool' resource(s)To switch to Direct mode, we need to change IPIPMODE to Never:
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get ippool -o wide
NAME CIDR NAT IPIPMODE VXLANMODE DISABLED DISABLEBGPEXPORT SELECTOR
default-ipv4-ippool 172.16.0.0/16 true Never Never false false all()# The Iface column now shows ens5, indicating that traffic to pod networks is routed via the physical interface.
route -n | egrep '(Destination|UG)'
ubuntu@k8s-w1:~$ route -n | egrep '(Destination|UG)'
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.10.1 0.0.0.0 UG 100 0 0 ens5
172.16.34.0 192.168.10.1 255.255.255.0 UG 0 0 0 ens5
172.16.116.0 192.168.10.10 255.255.255.0 UG 0 0 0 ens5
172.16.184.0 192.168.10.102 255.255.255.0 UG 0 0 0 ens5
192.168.0.2 192.168.10.1 255.255.255.255 UGH 100 0 0 ens5Create a new pod to test communication, List the pods and their IP addresses. Use calicoctl to check the workload endpoints:
# 파드 생성
curl -s -O https://raw.githubusercontent.com/gasida/NDKS/main/5/node3-pod3.yaml
kubectl apply -f node3-pod3.yaml
# 파드 IP 정보 확인
kubectl get pod -o wide
calicoctl get wep
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get wep
WORKLOAD NODE NETWORKS INTERFACE
pod1 k8s-w1 172.16.158.6/32 calice0906292e2
pod2 k8s-w1 172.16.158.5/32 calibd2348b4f67
pod3 k8s-w0 172.16.34.1/32 cali49778cadcf1# Ping Between Pods on the Same Node
# Access the shell of pod1:
kubectl exec -it pod1 -- zsh
# Inside the pod, ping pod2:
# Communication between pods on the same node should work seamlessly.
pod1 ~ ping 172.16.158.6
PING 172.16.158.6 (172.16.158.6) 56(84) bytes of data.
64 bytes from 172.16.158.6: icmp_seq=1 ttl=64 time=0.017 ms
64 bytes from 172.16.158.6: icmp_seq=2 ttl=64 time=0.029 ms
64 bytes from 172.16.158.6: icmp_seq=3 ttl=64 time=0.027 ms
64 bytes from 172.16.158.6: icmp_seq=4 ttl=64 time=0.028 ms
64 bytes from 172.16.158.6: icmp_seq=5 ttl=64 time=0.030 ms
64 bytes from 172.16.158.6: icmp_seq=6 ttl=64 time=0.026 ms
64 bytes from 172.16.158.6: icmp_seq=7 ttl=64 time=0.029 ms
64 bytes from 172.16.158.6: icmp_seq=8 ttl=64 time=0.029 ms
64 bytes from 172.16.158.6: icmp_seq=9 ttl=64 time=0.037 ms
64 bytes from 172.16.158.6: icmp_seq=10 ttl=64 time=0.076 ms
64 bytes from 172.16.158.6: icmp_seq=11 ttl=64 time=0.063 ms
64 bytes from 172.16.158.6: icmp_seq=12 ttl=64 time=0.027 ms
64 bytes from 172.16.158.6: icmp_seq=13 ttl=64 time=0.063 ms
64 bytes from 172.16.158.6: icmp_seq=14 ttl=64 time=0.028 ms
64 bytes from 172.16.158.6: icmp_seq=15 ttl=64 time=0.035 ms
64 bytes from 172.16.158.6: icmp_seq=16 ttl=64 time=0.031 ms
64 bytes from 172.16.158.6: icmp_seq=17 ttl=64 time=0.030 ms
64 bytes from 172.16.158.6: icmp_seq=18 ttl=64 time=0.031 ms
64 bytes from 172.16.158.6: icmp_seq=19 ttl=64 time=0.030 msPods Involved:
pod1with IP 172.16.158.6pod2with IP 172.16.158.5
Node:
- Both Pods are running on the same node,
k8s-w1. - An attempt to capture ICMP packets on the node’s physical network interface
ens5usingtcpdumpresulted in no packets being captured. - Direct Communication: Since
pod1andpod2are on the same node, their network traffic does not need to leave the node. The communication occurs internally, routed directly between the Pods without involving the node's physical network interface (ens5). - VEach Pod is connected to the node’s network stack via virtual Ethernet interfaces (veth pairs). The host side of these pairs are the
cali*interfaces created by Calico (e.g.,calice0906292e2,calibd2348b4f67). - The Linux kernel handles packet forwarding between these virtual interfaces internally. The traffic stays within the node’s network namespace, avoiding the overhead of external routing.
On the node k8s-w1, try capturing ICMP packets on the physical interface. Since traffic between Pods on the same node doesn’t pass through the physical interface, you need alternative methods to capture and analyze it.
1. pod1 ~ ping 172.16.158.5
2. (⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod1 1/1 Running 0 16m 172.16.158.6 k8s-w1 <none> <none>
pod2 1/1 Running 0 47m 172.16.158.5 k8s-w1 <none> <none>
pod3 1/1 Running 0 16m 172.16.34.1 k8s-w0 <none> <none>
3. root@k8s-w1:~# tcpdump -i ens5 icmp -w ~/calico-direct.pcap
tcpdump: listening on ens5, link-type EN10MB (Ethernet), snapshot length 262144 bytes
^C0 packets captured
0 packets received by filter
0 packets dropped by kernel
root@k8s-w1:~# tcpdump -i any icmp -w ~/calico-all.pcap
tcpdump: data link type LINUX_SLL2
tcpdump: listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
^C12 packets captured
17 packets received by filter
0 packets dropped by kernel
root@k8s-w1:~# tcpdump -i any icmp -w ~/calico-all.pcap
tcpdump: data link type LINUX_SLL2
tcpdump: listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
^C168 packets captured
173 packets received by filter
0 packets dropped by kernel
root@k8s-w1:~#
root@k8s-w1:~# tcpdump -r ~/calico-all.pcap -nn
reading from file /root/calico-all.pcap, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144
Warning: interface names might be incorrect
02:56:34.426876 calice0906292e2 In IP 172.16.158.6 > 172.16.158.5: ICMP echo request, id 102, seq 7, length 64
02:56:34.426910 calibd2348b4f67 Out IP 172.16.158.6 > 172.16.158.5: ICMP echo request, id 102, seq 7, length 64
02:56:34.426919 calibd2348b4f67 In IP 172.16.158.5 > 172.16.158.6: ICMP echo reply, id 102, seq 7, length 64
02:56:34.426926 calice0906292e2 Out IP 172.16.158.5 > 172.16.158.6: ICMP echo reply, id 102, seq 7, length 64
02:56:35.450857 calice0906292e2 In IP 172.16.158.6 > 172.16.158.5: ICMP echo request, id 102, seq 8, length 64
02:56:35.450890 calibd2348b4f67 Out IP 172.16.158.6 > 172.16.158.5: ICMP echo request, id 102, seq 8, length 64
02:56:35.450900 calibd2348b4f67 In IP 172.16.158.5 > 172.16.158.6: ICMP echo reply, id 102, seq 8, length 64
02:56:35.450907 calice0906292e2 Out IP 172.16.158.5 > 172.16.158.6: ICMP echo reply, id 102, seq 8, length 64
02:56:36.474884 calice0906292e2 In IP 172.16.158.6 > 172.16.158.5: ICMP echo request, id 102, seq 9, length 64We have pod1 running on k8s-w1 with IP 172.16.158.6 and pod3 running on k8s-w0 with IP 172.16.34.1. Test communication between Pods on different nodes to understand inter-node networking behavior is our objective in this stage.
# pod1 쉘에서 pod3로 ping:
kubectl exec -it pod1 - zsh
pod1 ~ ping 172.16.34.1
PING 172.16.34.1 (172.16.34.1) 56(84) bytes of data.
^C
--- 172.16.34.1 ping statistics ---
38 packets transmitted, 0 received, 100% packet loss, time 37890ms# 새 터미널 창을 열고, k8s-w1 노드에 SSH로 접속:
# k8s-w1 노드에서 ICMP 패킷 캡처 (ens5 인터페이스 사용):
ssh root@k8s-w1
tcpdump -i ens5 -nn icmp
03:00:43.770862 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 26, length 64
03:00:44.807303 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 27, length 64
03:00:45.818854 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 28, length 64
03:00:46.842842 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 29, length 64
03:00:47.866979 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 30, length 64
03:00:48.890853 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 31, length 64
03:00:49.914933 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 32, length 64
03:00:50.938932 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 33, length 64
03:00:51.966849 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 34, length 64
03:00:52.986853 IP 172.16.158.6 > 172.16.34.1: ICMP echo request, id 116, seq 35, length 64When attempting to ping pod3 from pod1, the ping requests time out. Capturing ICMP packets on k8s-w1 shows that ping requests are sent but no replies are received. The worker nodes k8s-w1 and k8s-w0 are on different subnets, which can affect inter-node communication.
Using CrossSubnet Mode: Enable direct routing within the same subnet and use IPIP encapsulation for traffic across different subnets. Routes within the same subnet use the main interface, while routes to different subnets use tunl0.
# CrossSubnet 모드 설정
calicoctl patch ippool default-ipv4-ippool -p '{"spec":{"ipipMode":"CrossSubnet"}}'# 모드 확인
calicoctl get ippool -o wide
NAME CIDR NAT IPIPMODE VXLANMODE DISABLED SELECTOR
default-ipv4-ippool 172.16.0.0/16 true CrossSubnet Never false all()# 파드 생성
kubectl apply -f node3-pod3.yaml
calicoctl get wep# 호스트 라우팅 정보 확인.
route -n | grep UG
root@ip-172-20-63-146:~# route -n | grep UG
100.105.79.128 172.20.61.184 255.255.255.192 UG 0 0 0 ens5 # 노드간 같은 네트워크 대역 - Direct 모드
100.125.78.64 172.20.59.153 255.255.255.192 UG 0 0 0 ens5 # 노드간 같은 네트워크 대역 - Direct 모드
100.127.64.128 172.20.64.181 255.255.255.192 UG 0 0 0 tunl0 # 노드간 다른 네트워크 대역 - IPIP 모드# 파드 Shell 접속(zsh)
kubectl exec -it pod1 -- zsh
## 파드 Shell 에서 아래 입력
ping <pod2 혹은 pod3 IP>
- Ping Pods on Same Subnet: Should work without encapsulation.
- Ping Pods on Different Subnets: Should work with IPIP encapsulation.
Enabling WireGuard Encryption: Capture traffic on the main interface to confirm encryption (packets should not reveal Pod IPs).
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl patch felixconfiguration default --type='merge' -p '{"spec":{"wireguardEnabled":true}}'
Successfully patched 1 'FelixConfiguration' resource
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get felixconfiguration default -o yaml | grep wireguardEnabled
wireguardEnabled: true
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get felixconfiguration default -o yaml | grep wireguardEnabled
wireguardEnabled: true
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get node -o yaml | grep wireguardPublicKey
wireguardPublicKey: nGJDPnehiHNMwf9Z25Q8hGN1PCTeCTefh1pNAEjiPC8=
wireguardPublicKey: DwdcNTZ9CzJdaW5SxmvfrHNqDcHZgFTUqhf+srC/1yk=
wireguardPublicKey: rWepcpPRToZHtb563t5AKAhIHT69rMgTOIuCE8o3AgE=
wireguardPublicKey: XK6OS/pP/4/ntGg3WdPYTQP9SQLWNM884DlC/8OgK1s=
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# calicoctl get node k8s-w1 -o yaml | grep wireguardPublicKey
wireguardPublicKey: rWepcpPRToZHtb563t5AKAhIHT69rMgTOIuCE8o3AgE=
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ip -c -d addr show wireguard.cali
12: wireguard.cali: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 8941 qdisc noqueue state UNKNOWN group default qlen 1000
link/none promiscuity 0 minmtu 0 maxmtu 2147483552
wireguard numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535
inet 172.16.116.2/32 scope global wireguard.cali
valid_lft forever preferred_lft forever
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# ifconfig wireguard.cali
wireguard.cali: flags=209<UP,POINTOPOINT,RUNNING,NOARP> mtu 8941
inet 172.16.116.2 netmask 255.255.255.255 destination 172.16.116.2
unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 1000 (UNSPEC)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# wg showconf wireguard.cali
[Interface]
ListenPort = 51820
FwMark = 0x100000
PrivateKey = yF8F44A8v5Spr9jX5YwRSCKktNkPvkoYbLd1nuG8i0M=
[Peer]
PublicKey = rWepcpPRToZHtb563t5AKAhIHT69rMgTOIuCE8o3AgE=
AllowedIPs = 172.16.158.0/24, 172.16.158.7/32, 172.16.158.9/32
Endpoint = 192.168.10.101:51820
[Peer]
PublicKey = DwdcNTZ9CzJdaW5SxmvfrHNqDcHZgFTUqhf+srC/1yk=
AllowedIPs = 172.16.34.2/32, 172.16.34.0/24, 172.16.34.4/32
Endpoint = 192.168.20.100:51820
[Peer]
PublicKey = XK6OS/pP/4/ntGg3WdPYTQP9SQLWNM884DlC/8OgK1s=
AllowedIPs = 172.16.184.0/24, 172.16.184.1/32, 172.16.184.3/32
Endpoint = 192.168.10.102:51820
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~# wg show
interface: wireguard.cali
public key: nGJDPnehiHNMwf9Z25Q8hGN1PCTeCTefh1pNAEjiPC8=
private key: (hidden)
listening port: 51820
fwmark: 0x100000
peer: rWepcpPRToZHtb563t5AKAhIHT69rMgTOIuCE8o3AgE=
endpoint: 192.168.10.101:51820
allowed ips: 172.16.158.0/24, 172.16.158.7/32, 172.16.158.9/32
peer: DwdcNTZ9CzJdaW5SxmvfrHNqDcHZgFTUqhf+srC/1yk=
endpoint: 192.168.20.100:51820
allowed ips: 172.16.34.2/32, 172.16.34.0/24, 172.16.34.4/32
peer: XK6OS/pP/4/ntGg3WdPYTQP9SQLWNM884DlC/8OgK1s=
endpoint: 192.168.10.102:51820
allowed ips: 172.16.184.0/24, 172.16.184.1/32, 172.16.184.3/32
(⎈|kubernetes-admin@kubernetes:default) root@k8s-m:~#Monitor Calico component metrics — Docs
To maintain a healthy Kubernetes cluster with Calico networking, it’s crucial to monitor the Calico components for performance and issues. You can use Prometheus to collect valuable metrics from Calico components such as Felix and Typha, as well as kube-controllers.
Enable Metrics in Felix
First, enable Prometheus metrics in the Felix configuration: By default, Felix publishes its metrics on TCP port 9091. Create a Kubernetes Service to expose these metrics.
Configure Calico to enable metrics reporting
# Felix configuration
calicoctl get felixconfiguration -o yaml
calicoctl patch felixconfiguration default --patch '{"spec":{"prometheusMetricsEnabled": true}}'
# Creating a service to expose Felix metrics : Felix by default uses port 9091 TCP to publish its metrics.
kubectl apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
name: felix-metrics-svc
namespace: kube-system
spec:
clusterIP: None
selector:
k8s-app: calico-node
ports:
- port: 9091
targetPort: 9091
EOF
kubectl get svc,ep -n kube-system felix-metrics-svc
# kube-controllers configuration : Prometheus metrics are enabled by default on TCP port 9094 for calico-kube-controllers
## Creating a service to expose kube-controllers metrics
calicoctl get kubecontrollersconfiguration default -o yaml
kubectl apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
name: kube-controllers-metrics-svc
namespace: kube-system
spec:
clusterIP: None
selector:
k8s-app: calico-kube-controllers
ports:
- port: 9094
targetPort: 9094
EOF
kubectl get svc,ep -n kube-system kube-controllers-metrics-svc
# Namespace creation
kubectl create -f -<<EOF
apiVersion: v1
kind: Namespace
metadata:
name: calico-monitoring
labels:
app: ns-calico-monitoring
role: monitoring
EOF
kubectl get ns
# Service account creation
kubectl apply -f - <<EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: calico-prometheus-user
rules:
- apiGroups: [""]
resources:
- endpoints
- services
- pods
verbs: ["get", "list", "watch"]
- nonResourceURLs: ["/metrics"]
verbs: ["get"]
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: calico-prometheus-user
namespace: calico-monitoring
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: calico-prometheus-user
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: calico-prometheus-user
subjects:
- kind: ServiceAccount
name: calico-prometheus-user
namespace: calico-monitoring
EOF
kubectl get sa -n calico-monitoringPrometheus metrics are enabled by default on TCP port 9094 for calico-kube-controllers. Created a Service to expose these metrics; and just set up a service account and appropriate permissions for Prometheus to scrape metrics.
Create a ConfigMap with the Prometheus configuration to scrape metrics from Calico components.
#
kubectl apply -f - <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: calico-monitoring
data:
prometheus.yml: |-
global:
scrape_interval: 15s
external_labels:
monitor: 'tutorial-monitor'
scrape_configs:
- job_name: 'prometheus'
scrape_interval: 5s
static_configs:
- targets: ['localhost:9090']
- job_name: 'felix_metrics'
scrape_interval: 5s
scheme: http
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_name]
regex: felix-metrics-svc
replacement: $1
action: keep
- job_name: 'felix_windows_metrics'
scrape_interval: 5s
scheme: http
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_name]
regex: felix-windows-metrics-svc
replacement: $1
action: keep
- job_name: 'typha_metrics'
scrape_interval: 5s
scheme: http
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_name]
regex: typha-metrics-svc
replacement: $1
action: keep
- job_name: 'kube_controllers_metrics'
scrape_interval: 5s
scheme: http
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_name]
regex: kube-controllers-metrics-svc
replacement: $1
action: keep
EOF
kubectl get cm -n calico-monitoring prometheus-config
# Create Prometheus pod
kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
name: prometheus-pod
namespace: calico-monitoring
labels:
app: prometheus-pod
role: monitoring
spec:
nodeSelector:
kubernetes.io/os: linux
serviceAccountName: calico-prometheus-user
containers:
- name: prometheus-pod
image: prom/prometheus
resources:
limits:
memory: "128Mi"
cpu: "500m"
volumeMounts:
- name: config-volume
mountPath: /etc/prometheus/prometheus.yml
subPath: prometheus.yml
ports:
- containerPort: 9090
volumes:
- name: config-volume
configMap:
name: prometheus-config
EOF
kubectl get pods prometheus-pod -n calico-monitoring -owide

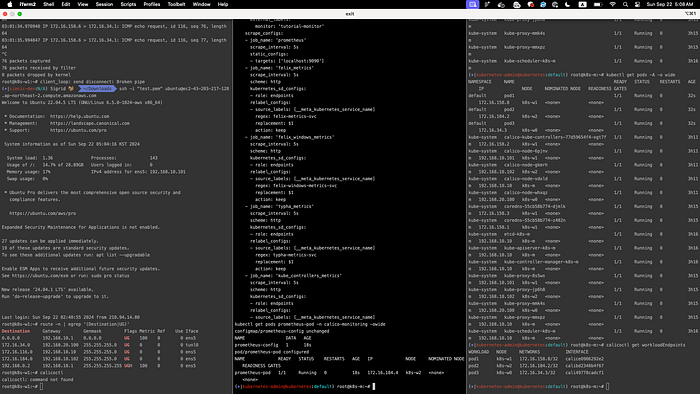

View metrics
# 파드 IP 확인
kubectl get pods prometheus-pod -n calico-monitoring -owide
# 파드 IP metrics 엔드포인트 curl 접속 확인
curl <파드 IP>:9090/metrics
curl 172.16.34.7:9090/metrics
#
kubectl apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
name: prometheus-dashboard-svc
namespace: calico-monitoring
spec:
type: NodePort
selector:
app: prometheus-pod
role: monitoring
ports:
- protocol: TCP
port: 9090
targetPort: 9090
nodePort: 30001
EOF
kubectl get svc,ep -n calico-monitoring
# 프로메테우스 접속 주소
echo -e "Prometheus URL = http://$(curl -s ipinfo.io/ip):30001" # [실습환경 A Type]
echo -e "Prometheus URL = http://192.168.10.10:30001" # [실습환경 B Type]
Determine the external IP address of your cluster and access the Prometheus UI and Grafana UI using the NodePort. Open the provided URL in a web browser for Grafana. Use the default credentials to log in:
- Username:
admin - Password:
admin

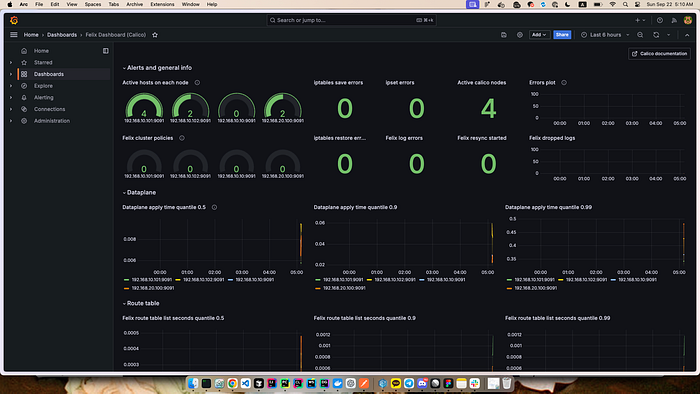

Use Grafana dashboard to view Calico component metrics.
# Provisioning datasource
kubectl apply -f - <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: grafana-config
namespace: calico-monitoring
data:
prometheus.yaml: |-
{
"apiVersion": 1,
"datasources": [
{
"access":"proxy",
"editable": true,
"name": "calico-demo-prometheus",
"orgId": 1,
"type": "prometheus",
"url": "http://prometheus-dashboard-svc.calico-monitoring.svc:9090",
"version": 1
}
]
}
EOF
kubectl get cm -n calico-monitoring
# Provisioning Calico dashboards : Here you will create a configmap with Felix and Typha dashboards.
kubectl apply -f https://raw.githubusercontent.com/projectcalico/calico/v3.28.1/manifests/grafana-dashboards.yaml
# Creating Grafana pod
kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
name: grafana-pod
namespace: calico-monitoring
labels:
app: grafana-pod
role: monitoring
spec:
nodeSelector:
kubernetes.io/os: linux
containers:
- name: grafana-pod
image: grafana/grafana:latest
resources:
limits:
memory: "128Mi"
cpu: "500m"
volumeMounts:
- name: grafana-config-volume
mountPath: /etc/grafana/provisioning/datasources
- name: grafana-dashboards-volume
mountPath: /etc/grafana/provisioning/dashboards
- name: grafana-storage-volume
mountPath: /var/lib/grafana
ports:
- containerPort: 3000
volumes:
- name: grafana-storage-volume
emptyDir: {}
- name: grafana-config-volume
configMap:
name: grafana-config
- name: grafana-dashboards-volume
configMap:
name: grafana-dashboards-config
EOF
#
kubectl get pod -n calico-monitoring
#
kubectl apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
name: grafana
namespace: calico-monitoring
spec:
type: NodePort
selector:
app: grafana-pod
role: monitoring
ports:
- protocol: TCP
port: 3000
targetPort: 3000
nodePort: 30002
EOF
kubectl get svc,ep -n calico-monitoring
# 그라파나 접속 주소 : 초기 계정 ( admin , admin )
echo -e "Grafana URL = http://$(curl -s ipinfo.io/ip):30002" # [실습환경 A Type]
echo -e "Grafana URL = http://192.168.10.10:30002" # [실습환경 B Type]
